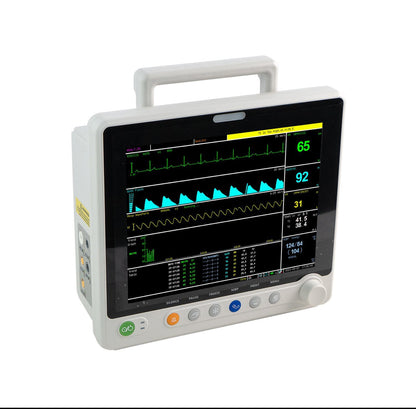

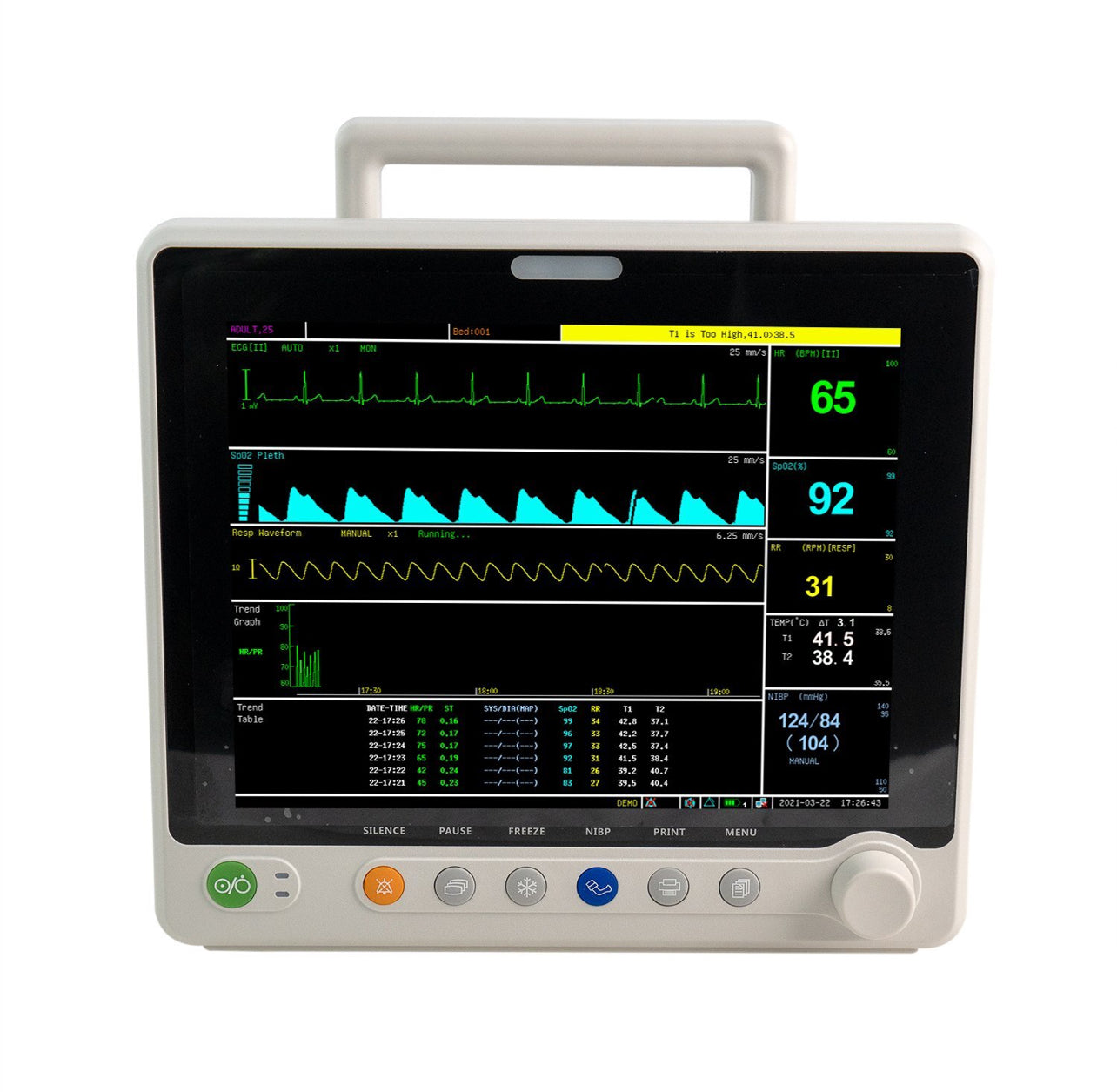

UVM02CS 12” Veterinary Multi-parameters Monitor - ECG RESP SpO2 NIBP TEMP PR Etco2(Sidestream)

UVM02CS 12” Veterinary Multi-parameters Monitor - ECG RESP SpO2 NIBP TEMP PR Etco2(Sidestream)

$2,959.00 AUD
$2,959.00 AUD
Sale Sold out

The UVM02CS is a multi-parameter veterinary monitor with 12.1 inches high resolution LCD display. It is intended to be used in veterinary clinics and hospitals to measure animals’ SpO2, Pulse rate, Non-invasive blood pressure, Temperature, 5-lead/3-lead electrocardiography (ECG) Respiration rate and Capnography (ETCO2). It has an optional parameters of Invasive blood pressure (IBP).

Main Features

  • 12.1' coloured and bright, high definition (800 x 600) TFT LCD screen;
  • Parameters: SpO2, ECG, Heart Rate,NIBP, TEMP*2,RESP Etco2(Sidestream) (Optional: 2*IBP);
  • Suitable for cat, dog, horse and other animals ;
  • 72 hours graphic and tabular trends of all parameters;
  • 32 seconds full-disclosure waveform review ;
  • 500 NIBP and SpO2 measurement data can be stored and recalled;
  • Built-in large capacity( 4400mAh ) rechargeable Lithium battery, up to more 4hours of work time

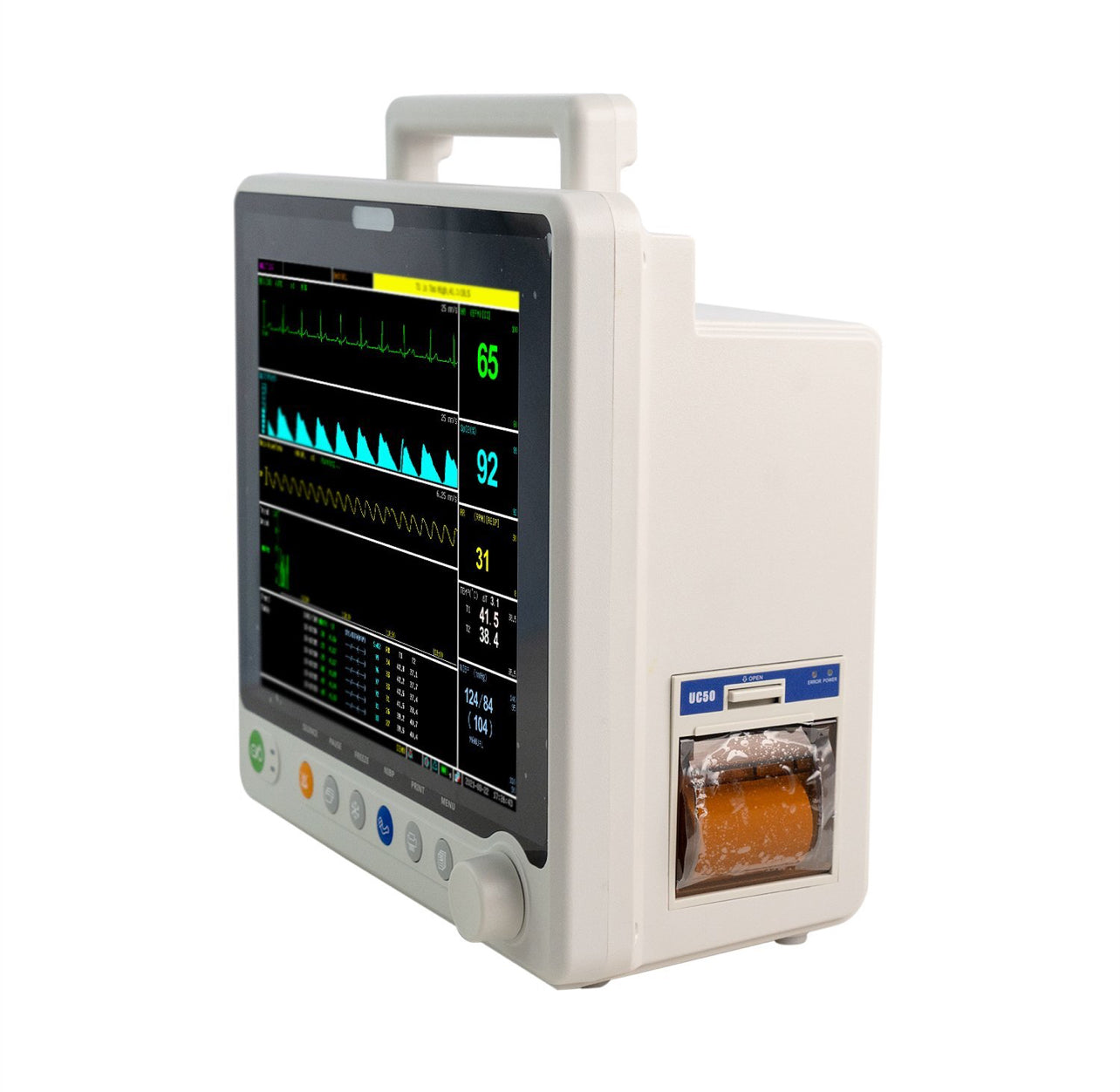

  • Equipped with internal printer(optional). Support for 3 channel waveform print ;
  • 100MBase-T Ethernet Interface, Support to connect to IPMS8000 Patient Management System;
  • Special designed SpO2 technology with adjustable emitting light and a wide range measurement for veterinary
  • Special designed ECG technology with high input impedance to suit for different size of veterinaries
  • Special designed NIBP technology with different size of NIBP cuffs for veterinaries
  • Sidestream technology accommodates intubated and non-intubated animals
  • Unique Designed LOGO for veterinary use only
  • Equipped with accessory box, convenient to carry and save your space
  • The recorder supports the print of 3 channels wave form at the same time
  • Ergonomically designed handle to fit your hand comfortably.
  • Freeze alarm events, easy to capture alarm information.
  • Can link with IPMS8000 intelligent patient monitor system
  • Multi-language: English, Chinese, French, Spanish, Germany

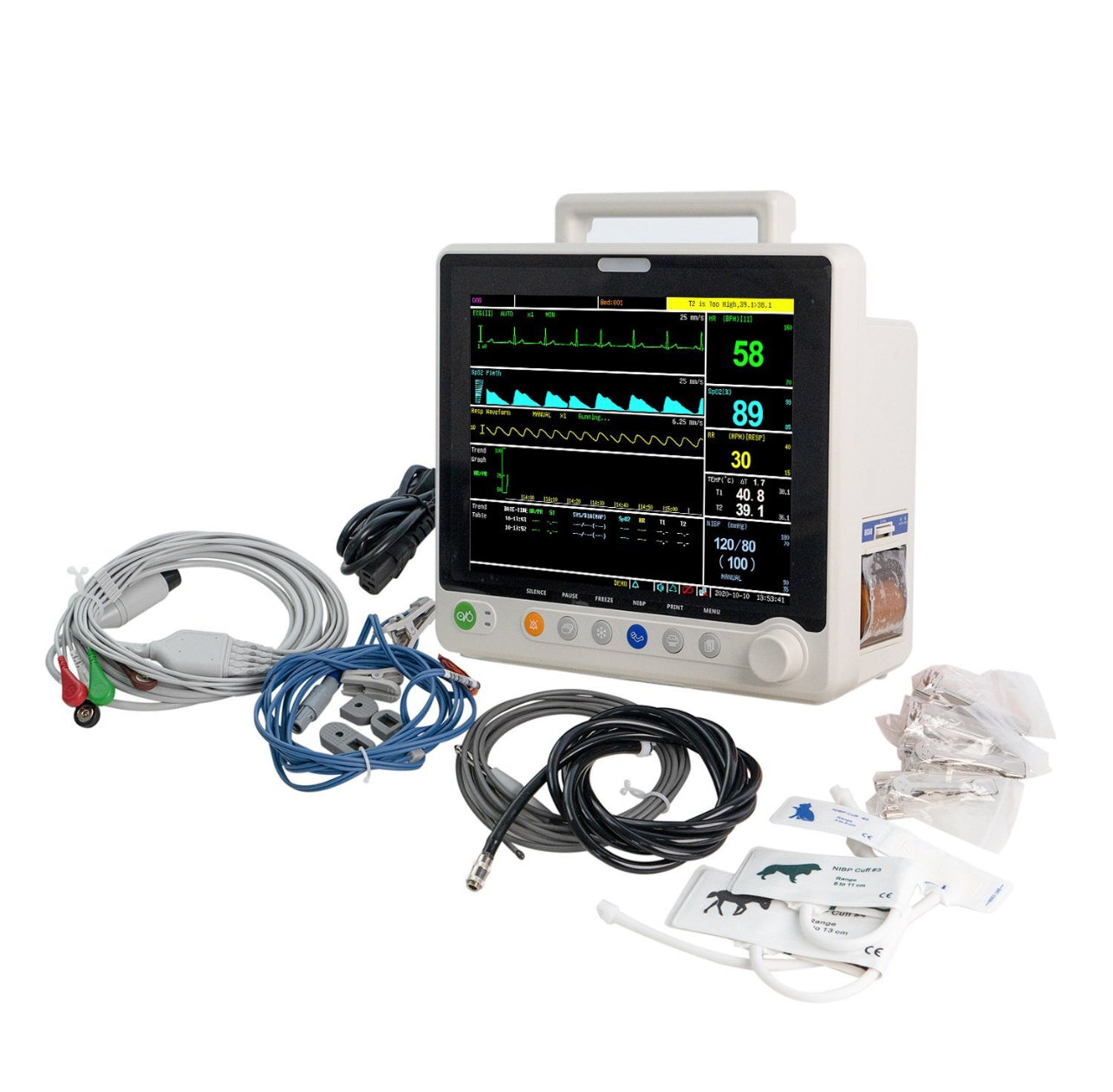

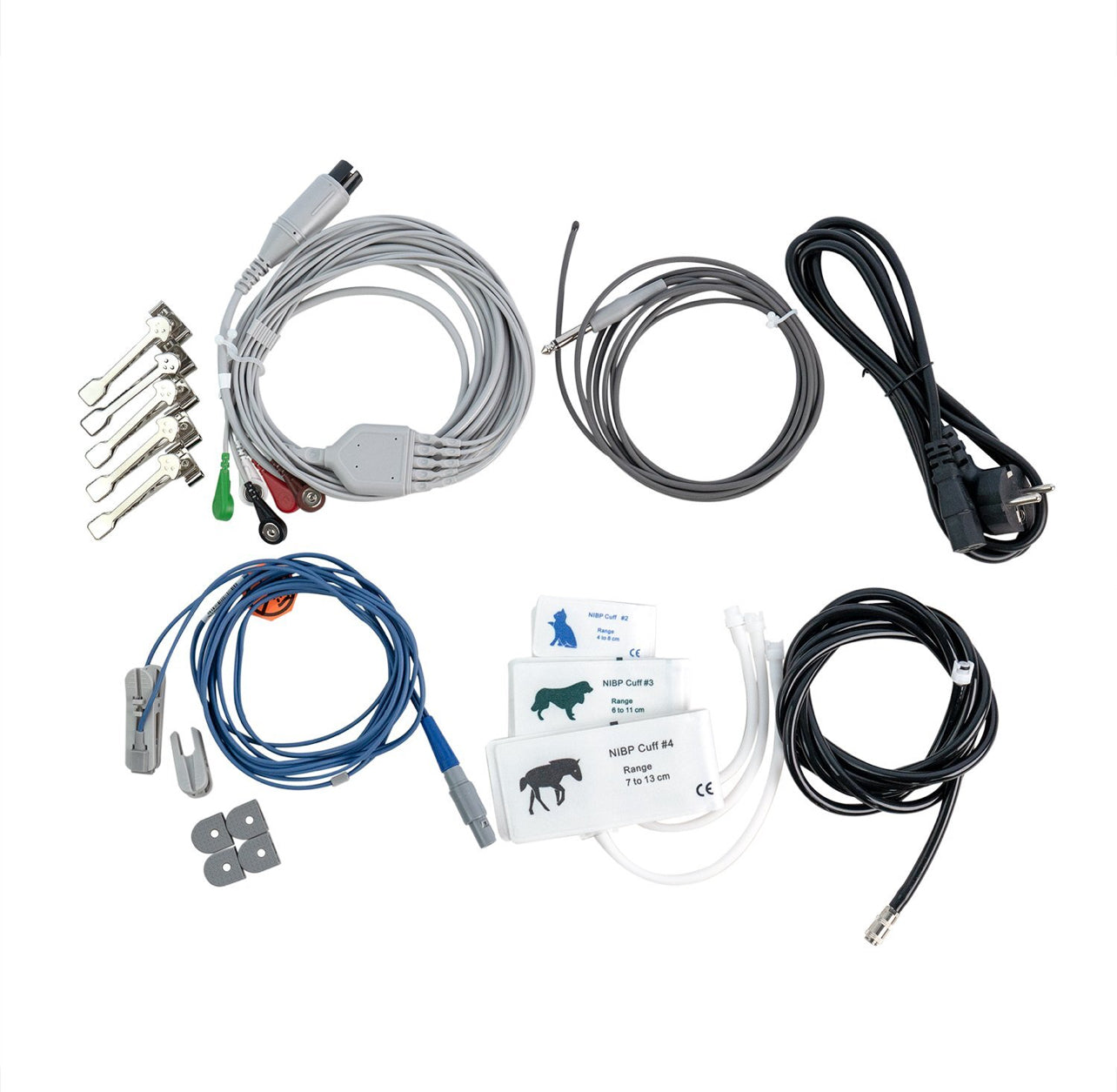

Standard Package:

  1. UVM02CS main unit (ECG  NIBP  SpO2 RESP TEMP PR Etco2)
  2. Veterinary SpO2 sensor (Y type Clip)
  3. 5-lead ECG cable
  4. 5 ECG Clips
  5. NIBP Cuffs for Veterinary(Cat, Dog, Horse)
  6. NIBP Extension Tube
  7. Temp Rectal Probe
  8. Sidestream Etco2 Sensor
  9. Sidestream Adapter
  10. Gas Sampling Line
  11. Gas Dryer Line
  12. T-fitting Tube
  13. Lithium Battery
  14. Power Cord
  15. User Manual


Optional Accessories

  • Mobile Trolley
  • Printer
  • Dual IBP


Warranty:

Main unit: 2 years
Accessories: 6 months
