Bestscan S5 Plus Wireless Color Doppler Ultrasound System

$5,699.00 AUD

Sale Sold out

Probe Rectal linear Rectal Convex Convex Back fat

The BestScan® S5 Plus series empower your efficiency through an intuitive and smart user interface that adapts to your imaging needs. The system is portable and can be used across multiple on-farm environments, including bovine and equine reproductive imaging, as well as for equine tendon scanning. We listened to you, and designed the BestScan® S5 Plus system to maximize the productivity of your practice, supporting you in providing the best veterinary ultrasound.

Advanced Digital Technology

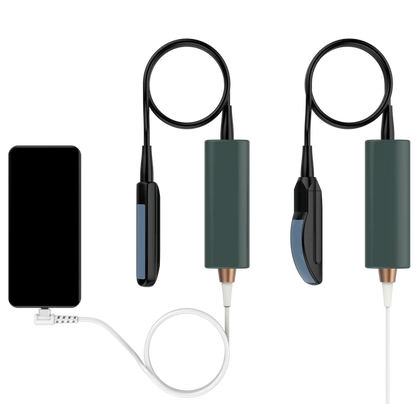

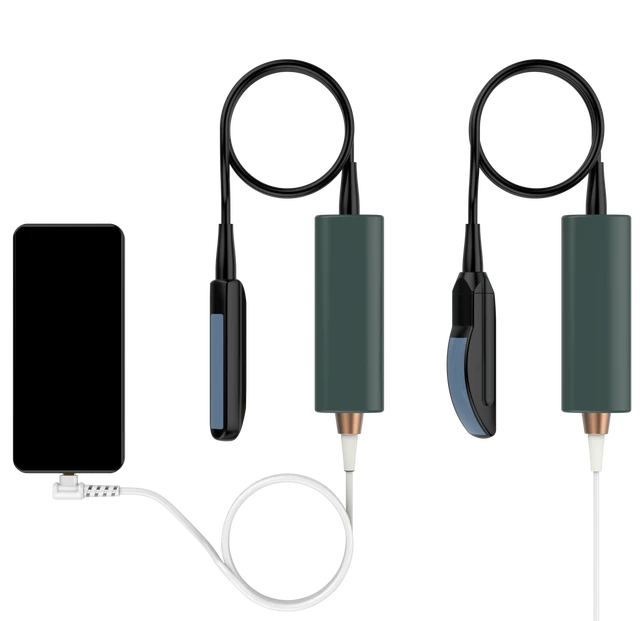

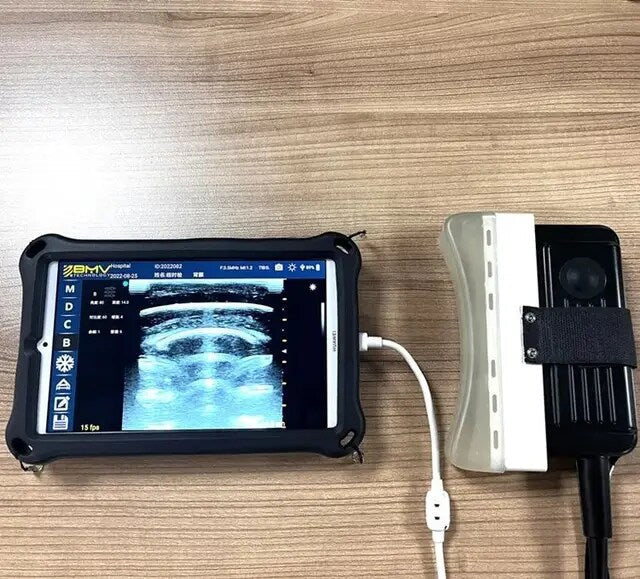

Works on Android & Windows smart devices
Stable wired connection, more stable without imaging delay

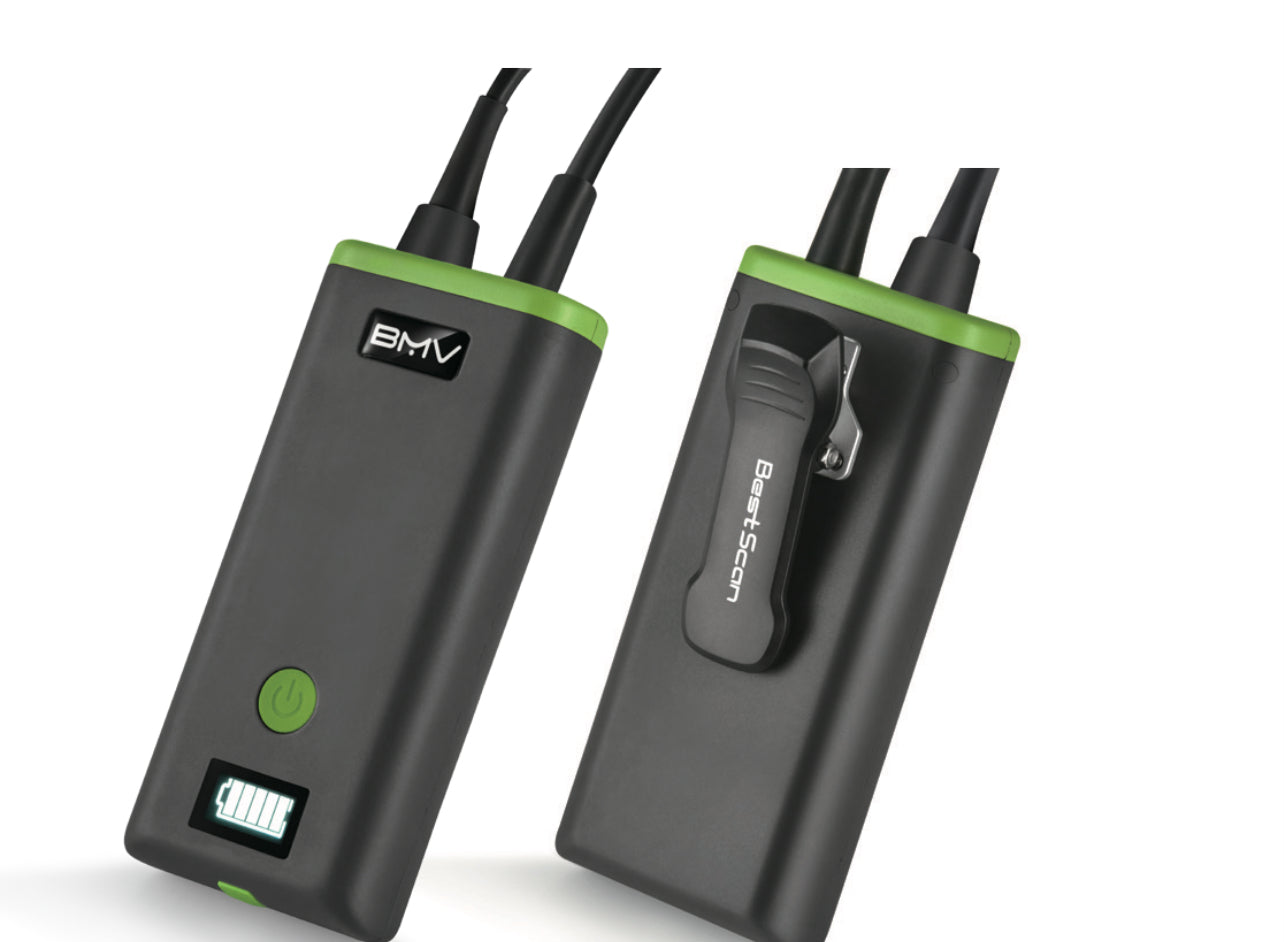

Large capacity battery for 6 hours working time, can work with power bank
128 elements high sensitivity probe
Rectal linear or rectal convex probe for choose •Record videos and save images on your smart devices
Water-proof and dust-proof design
Software specifically for bovine and equine, ovine reproductive imaging, as well as for equine tendon scanning

maging Mode	B,B+B,B+M,M,4B,Pseudo color imaging	Probe Type	Abdominal convex/micro convex/ High-frequency Linear/ Rectal convex/ Rectal linear
Probe Frequency	Multi-frequency Depends on probe type	Scanning depth	up to 300mm
External Connection Support	USB 2.0/Video glass/Mouse	Display	7" high resolution, anti-glare touch-screen
Gray Scale	256	Cine loop	512 frames
Power supply	100-240VAC	Image memory	Up to 1000

Model	Commodity/Descriptions

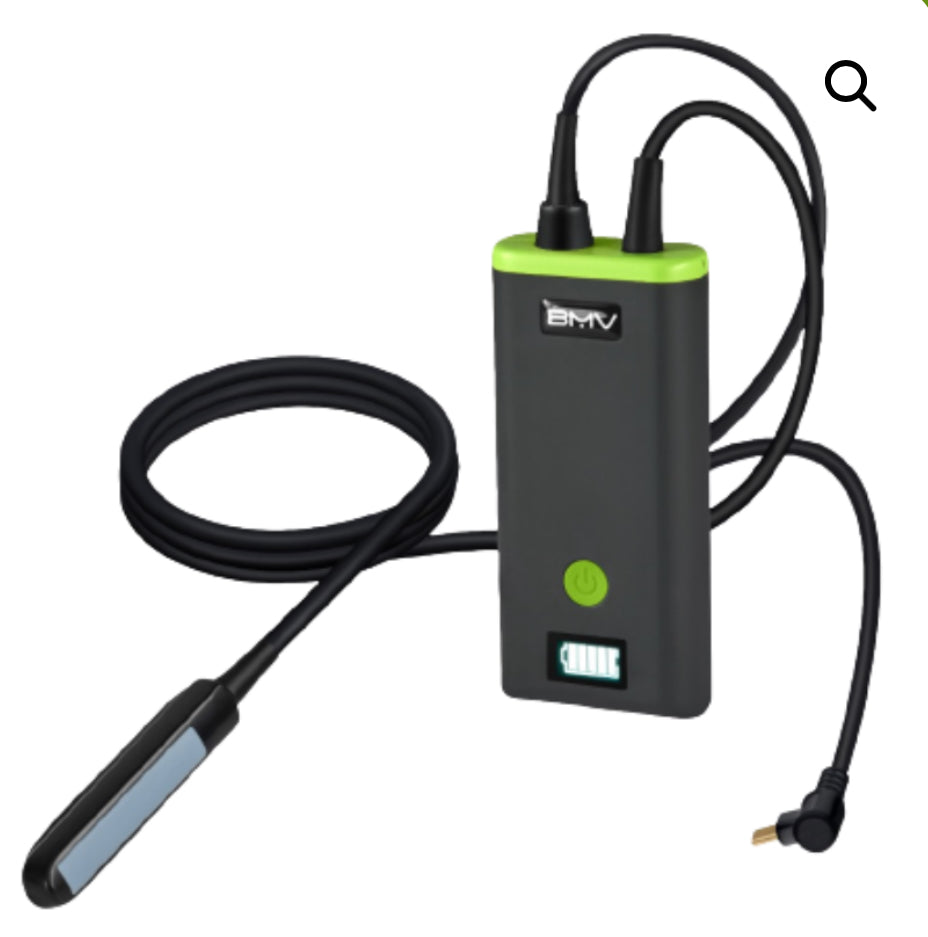

S5 GO RL	BestScan® S5 Go with Rectal Linear Probe

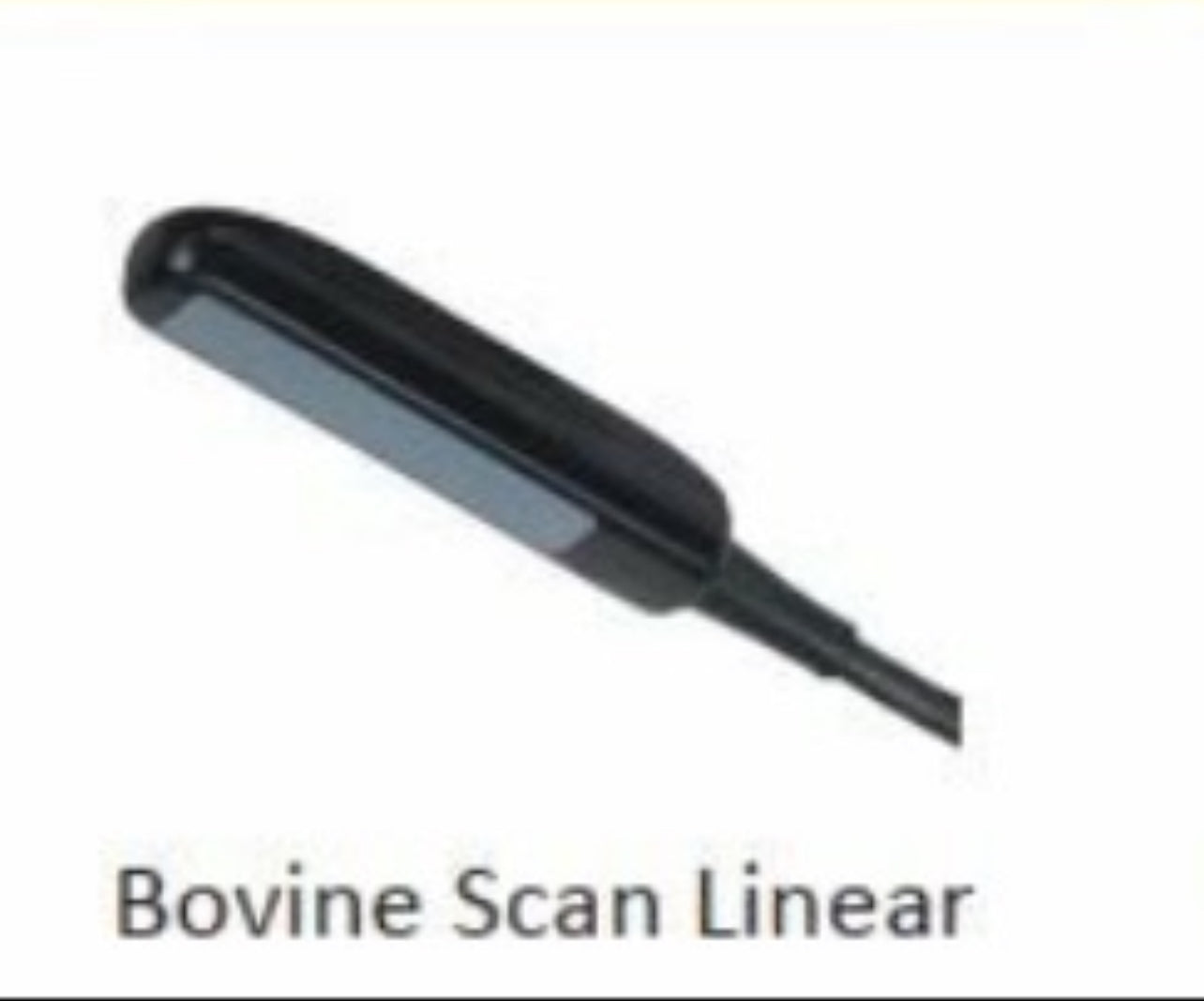

	6.5MHz Rectal Linear: 4-8MHz Center frequency: 6MHz Scanning width: 64 mm Scanning Depth: 2-10 cm

	Cow/Horse/Big Ruminant Animal Applications: Reproductive Diagnostics, Tendon Scanning

S5 GO RC	BestScan® S5 Go with Rectal Convex Probe

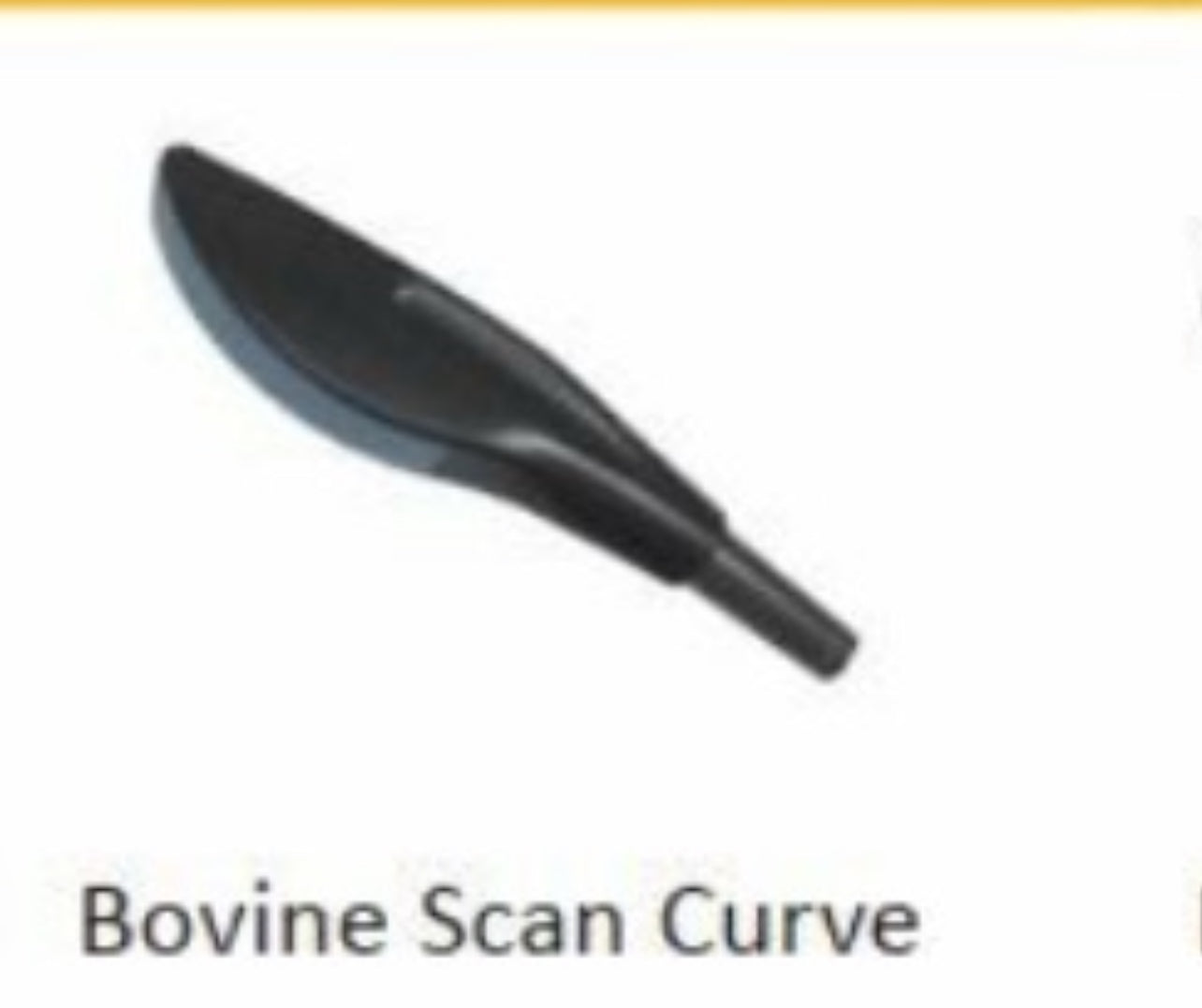

	3.5MHz Rectal Convex: 2.0/3.5/4.5/5MHz Central frequency: 3.5 MHz Radius: 60 mm/View angle: 61 degrees Scanning Depth: 6-24cm

	Cow/Horse/Big Ruminant Animal Applications: Reproductive Diagnostics

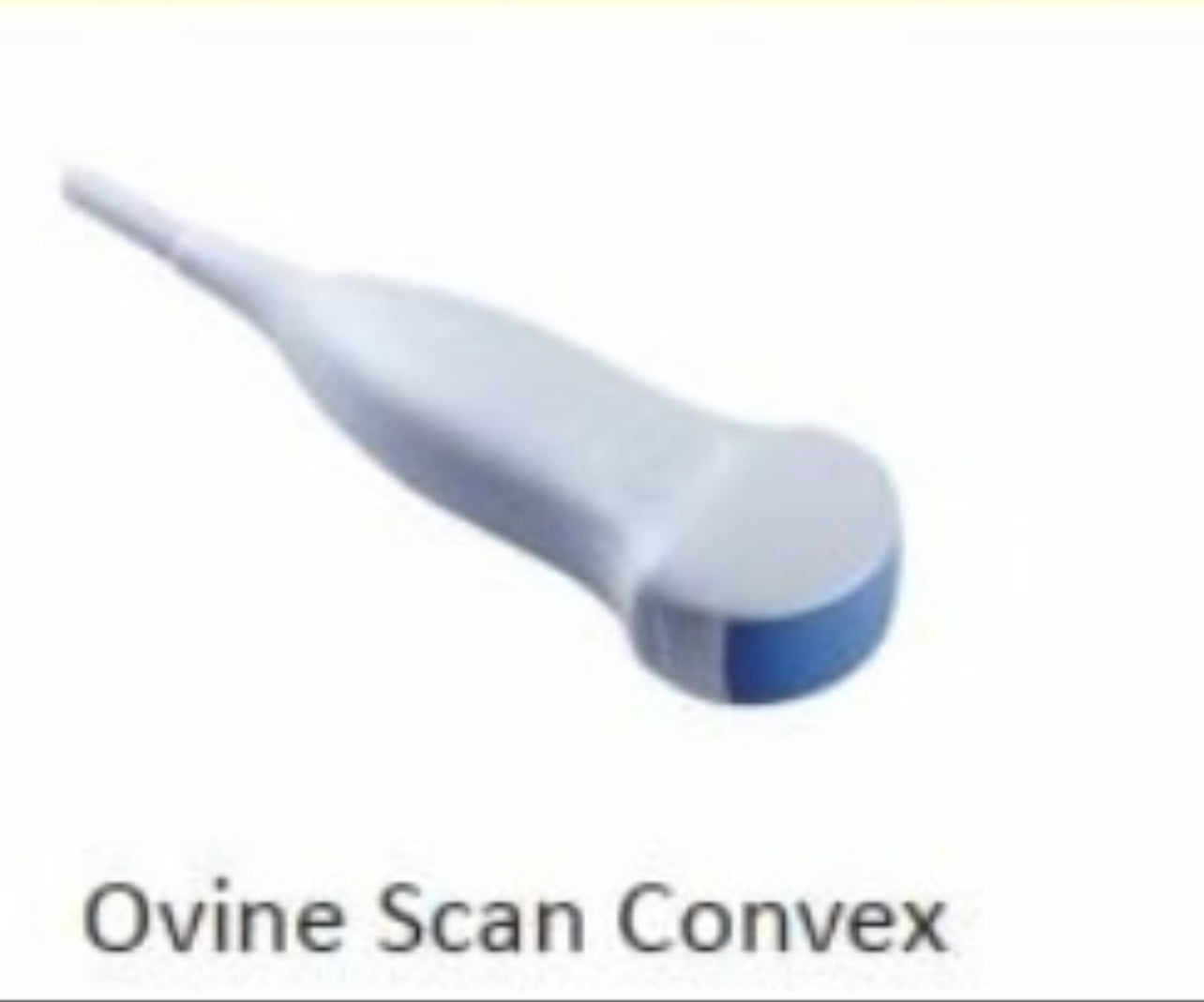

S5 GO CX	BestScan® S5 Go with Convex Probe
	3.5MHz Convex,2~5Mhz,Radius:60 mm, Scan depth: 6-24cm

	Sow/Sheep/Goat/Big Dog Applications:Fast Pregnancy Detection

Standard Configuration	Main Unit ( Probe )
	Battery charger & cable
	Robust IPX7 waterproof carry case
