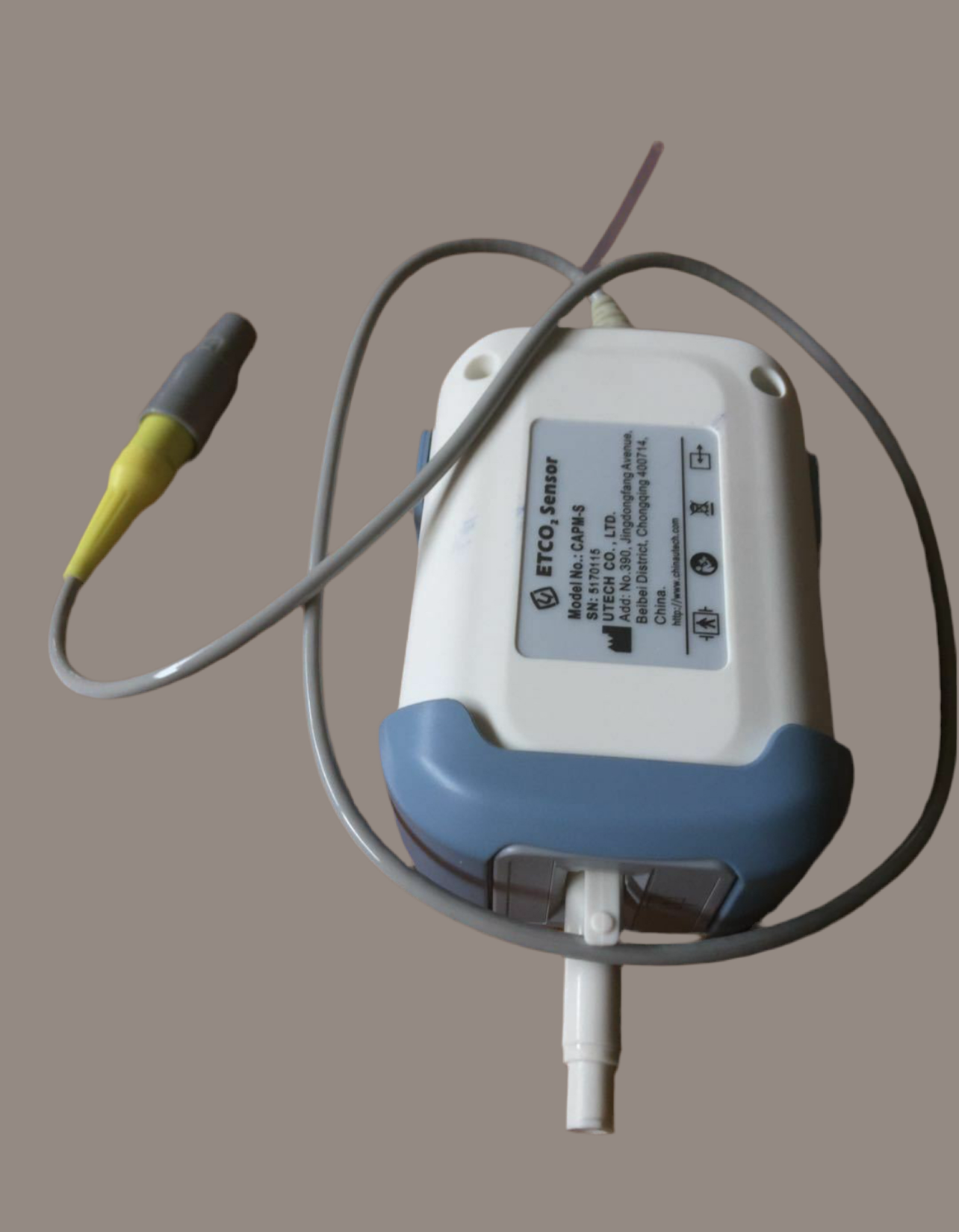

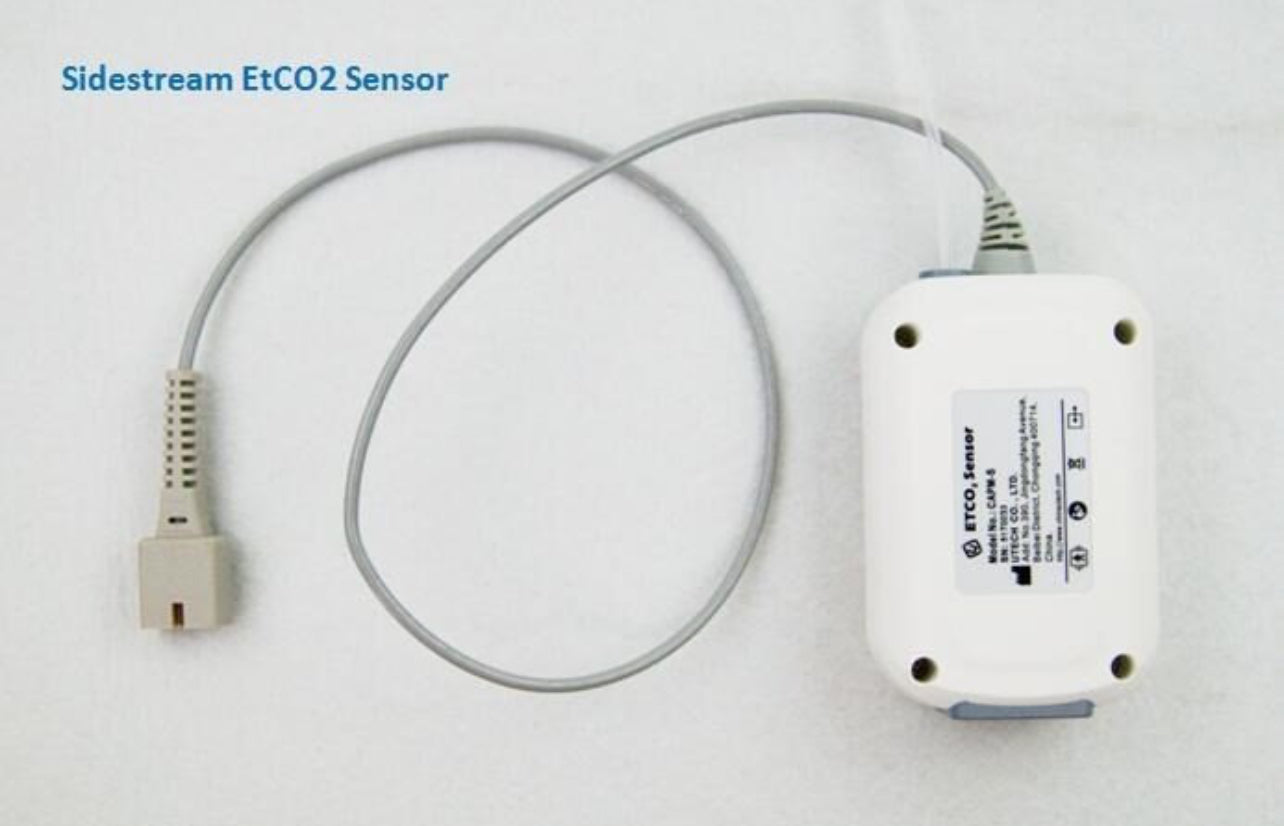

Sidestream ETCO2 Sensor

Sidestream CO2 Module with LEMON connector

Product Description

The ETCO2 module is the third ETCO2 version of National Medical. It is a kind of Low Flow Side stream Module. The new design is easier to match with monitor or anesthesia machine. The user just need to fix a 8-pin Lemo socket in the panel of the host, and connect the power of the host and dataline to an electrical outlet. This design will make maintenance much convenient. The CO2 sensor output parameters include real time CO2 concentration, respiration rate, end-tidal CO2, inspired CO2, The CO2 sensor module includes a miniature CO2 sensor, barometric pressure transducer, sampling flow control and a miniature low-power vacuum pump. The CO2 sensor can measure atmospheric pressure automatically, and has pressure compensated function. The host sends commands and receives waveform, breath parameters and command responses on two asynchronous serial data lines (TTL or RS232 level).

Key features

• 100% compatible with Respironics CapnoStat5
• Response is faster and there is less chance of erroneous, artifact data
• Long-lasting life for the infrared light receiver
• There are no pumping or pneumatic components to replace thus maintenance requirements and overall cost-of-ownership are minimized
• More affordable and economical
