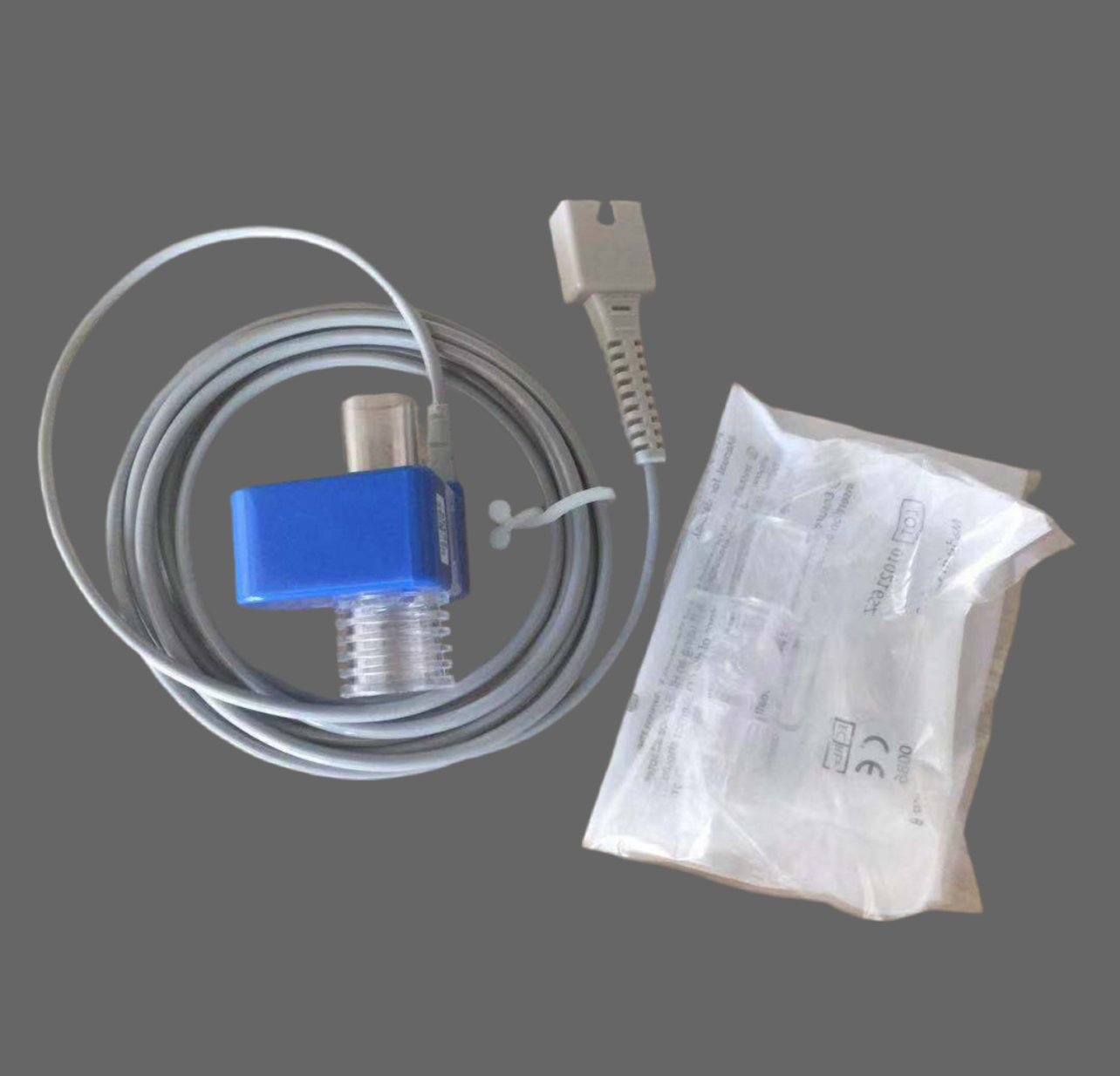

CAMP-M Mainstream CO2 Sensor - LEMON

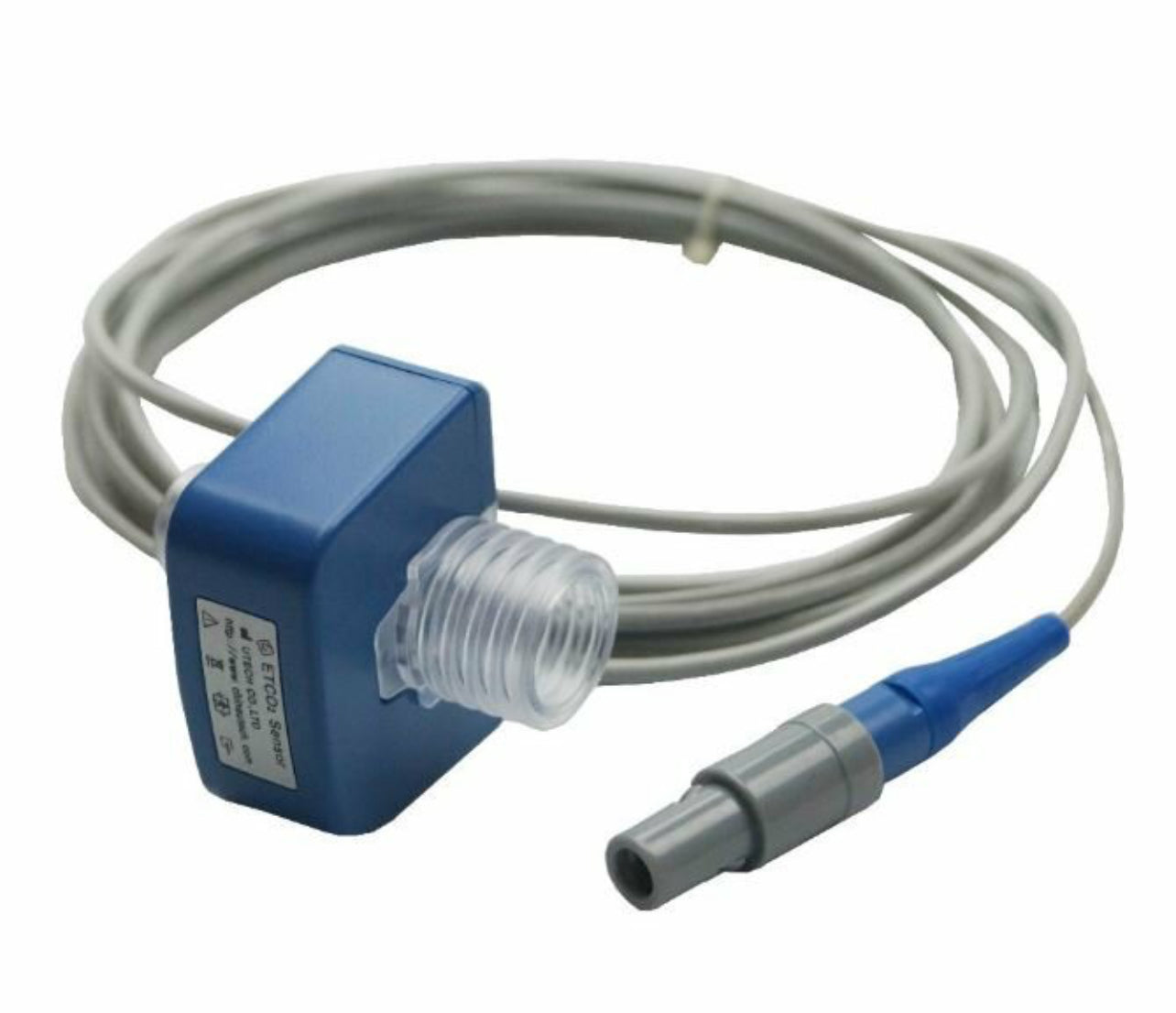

CAMP-M Mainstream CO2 Module with LEMON connector

Specification

• Transducer Type: Mainstream CO2 sensor
• Principle of Operation: Non-dispersive infrared (NDIR)/ InfraRed Spectroscopy
• Initialization Time: Capnogram displayed in less than 20 seconds

Reaching full specifications within 2 minutes

• CO2 Measure Range: 0–150 mmHg/0–19.7 %/0–20 kPa
• CO2 Accuracy: 0-40mmHg ±2 mmHg

41- 70 mmHg ±5% of reading

71 – 100mmHg ±8% of reading

101-150mmHg ±10% of reading

• CO2 Measure Resolution: 0.1mmHg
• RR Measure Range: 3 - 150 BPM
• RR Accuracy: ±1BPM
• Calibration: Don’t need user often calibration
• Compensation parameters: Barometer Pressure 450 - 850 mmHg. Operator selectable O2, N2O, He compensation.
• Power Requirements: 5.0 VDC ±5%, power consumption less than 1.3W typical
• Temperature / Humidity: Operating: 0⁰C to 40⁰C, 10 to 90% RH

Storage: -40⁰C to 70⁰C, <90% RH

• Data Interface: Rs232, 19200 baud rate, standard N-8-1.Compatible with Capnostst Main-Stream CO2 Sensor communication Protocol
• Regulatory: Designed to comply YY0601 and ISO2164
