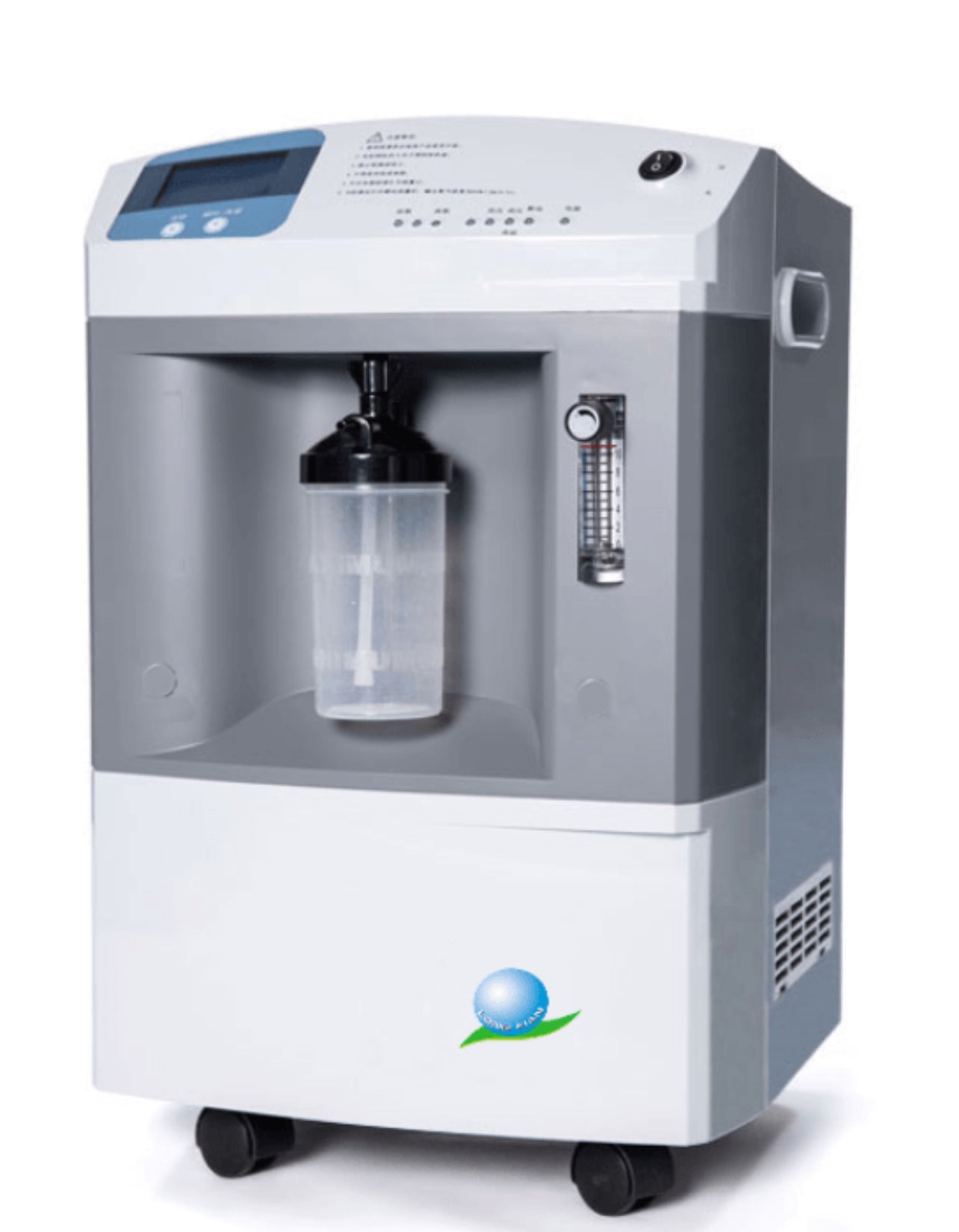

5L Oxygen Concentrator

5L Oxygen Concentrator

$1,159.00 AUD
$1,159.00 AUD
Sale Sold out



  • With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis.
  • Innovative cooling technology to ensure 24/7 operation.

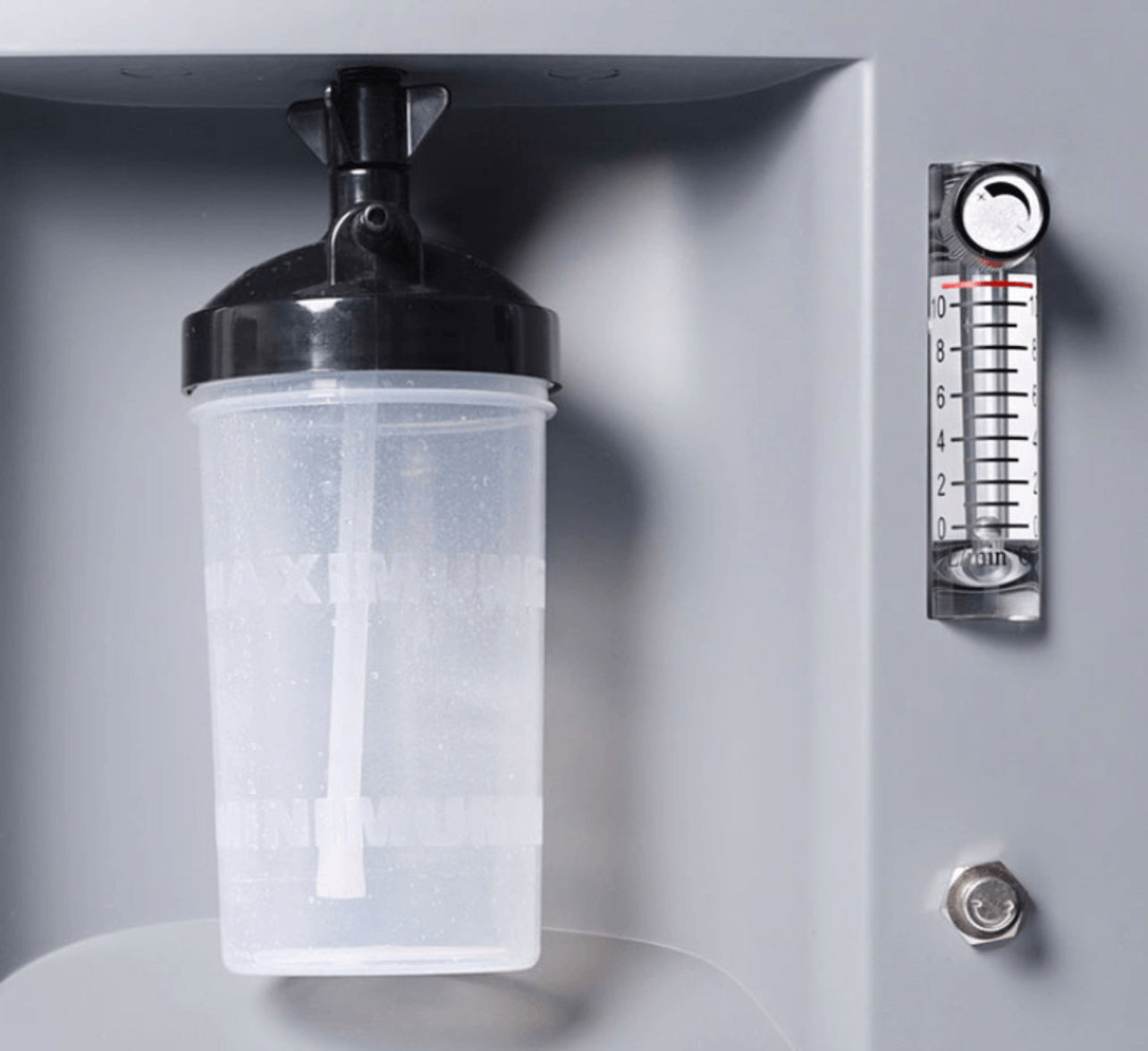

  • Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable.
  • Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient;

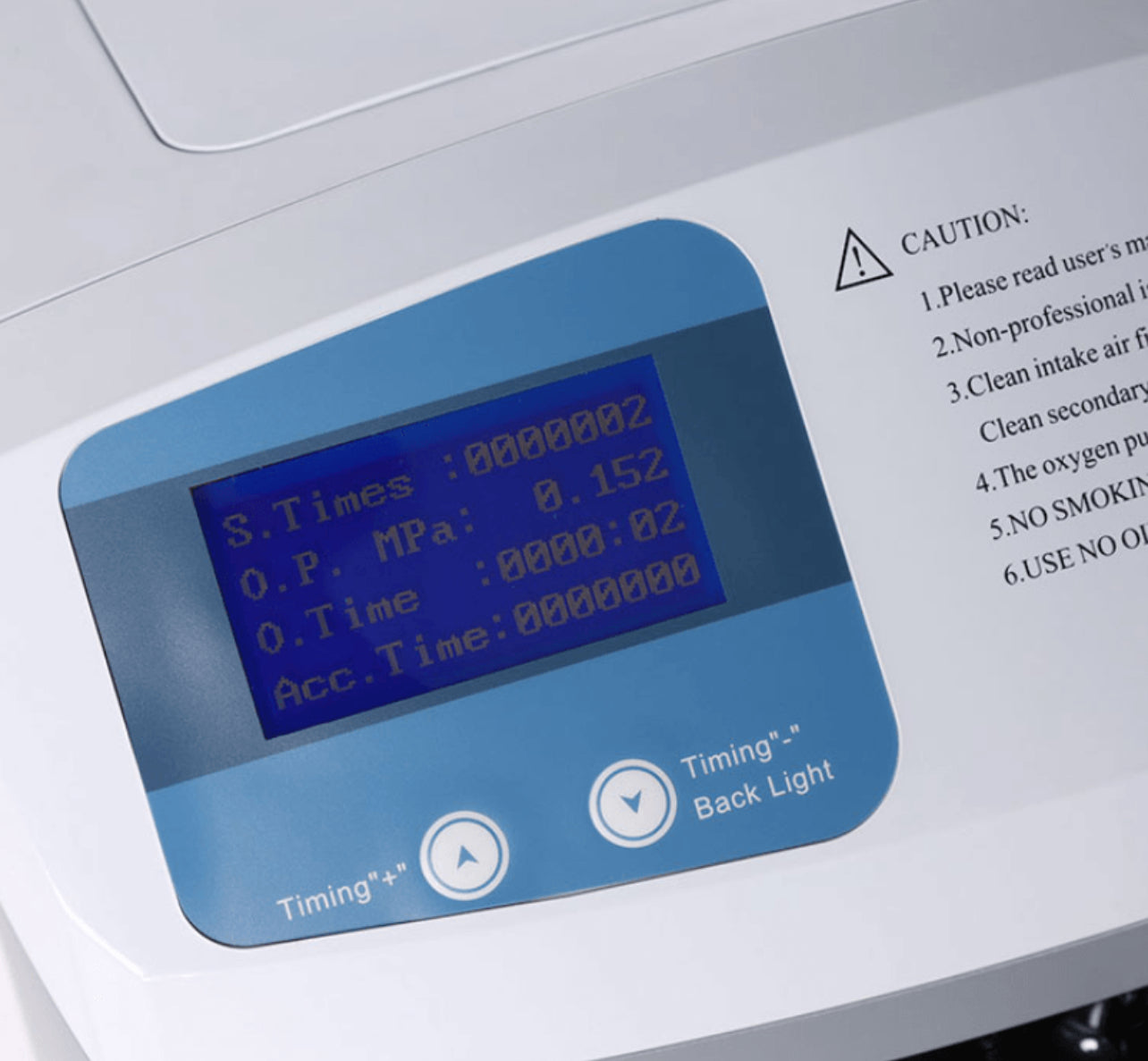

  • Simple operation functions and easy to read LCD display;
  • Connected to HFNC, provide oxygen with stable high concentration, more comfortable;
  • Connected to HBOC, rapidly and effectively increase the patient’s SPO2;
  • Two outlets is optional


Technical Specifications

Oxygen flow

0.5~5 LPM

Output pressure

6-10PSI(0.04-0.07MPa)

Power supply

110V/220V±10%, 50Hz/60Hz

Input power

550W (AVER)

Oxygen concentration

0.5~5 LPM, 93%±3%

Operation Environment

Temperature 5°C ~40°C

Humidity≤80%

Atmospheric pressure: 86kPa~106 kPa

OCSI indicator

85% above green;

85%below yellow;

82% below red

N.W.

26kg

Noise

<50dB(A)

Transportatiosn/storage condition

Temperature: -20°C ~55°C

Humidity: ≤90%

Atmospheric pressure: 86kPa~106 kPa
Alarms
1. Power failure alarm

2. High- and low-pressure alarm

3. Low oxygen concentration alarm



  • When oxygen purity is ≥82%, blue light illuminate;
  • When oxygen purity is <82%, red light illuminate, indicating low purity

Equipment class&Type

Class II/B
