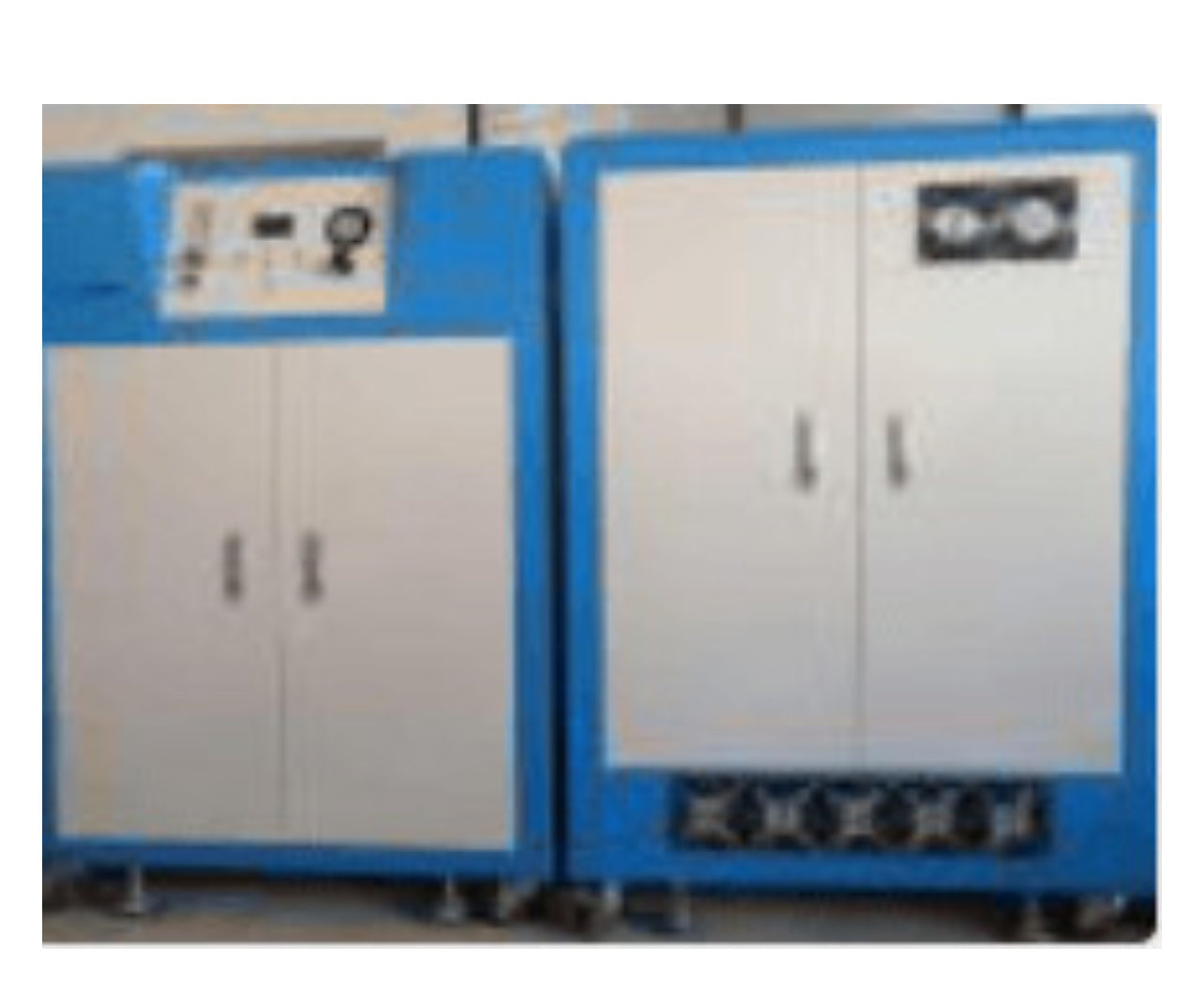

20L High pressure Oxygen Concentrator

20L High pressure Oxygen Concentrator

$8,599.00 AUD
$8,599.00 AUD
Sale Sold out



  • Using molecular sieve pressure swing adsorption principle, using air as raw material to physically produce oxygen
  • It can meet the oxygen supply for anesthesia machine, the outlet pressure is as high as 60PSI(0.4MPa), and it can be connected to most international brands of anesthesia machines and ventilators
  • For large animals more than 70KGs, such as cattle, horses, etc.
  • It meets the various clinical demands of veterinarians, and is widely applicable to the oxygen supply for veterinary clinic surgery, post-operation, ICU and emergency
  • It can connect with buffer tank to supply oxygen stably. According to oxygen demand, the oxygen production program is automatically stopped and automatically started

Technical Specifications

Oxygen flow

1~20 LPM

Output pressure

20-60PSI(0.14-0.4 MPa)

Power supply

110V/220V±10%, 50Hz/60Hz

Input power

<2000W

Oxygen concentration

93%±3%

Operation Environment

Temperature 5°C ~40°C

Humidity≤80%

Atmospheric pressure: 86kPa~106 kPa

Noise

<60 dB(A)

Net Weight

 118KG
Alarms 1. Power failure alarm



2. High- and low-pressure alarm

3. Low oxygen concentration alarm

  • When oxygen purity is ≥82%, blue light illuminate;
  • When oxygen purity is <82%, red light illuminate, indicating low purity

Equipment class&Type

Class II/B
